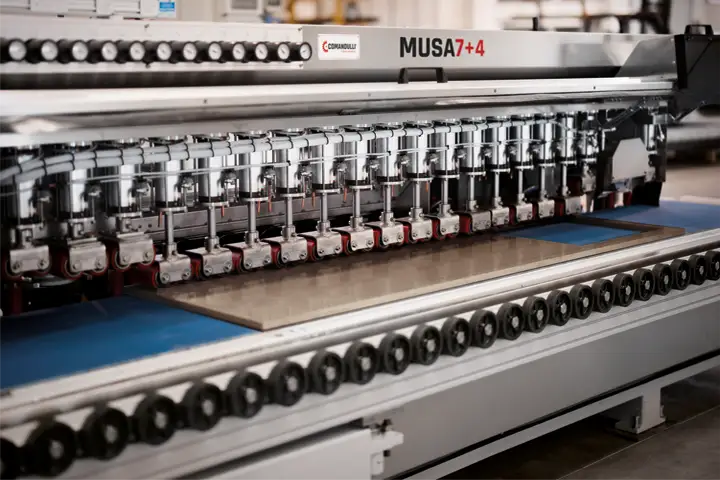

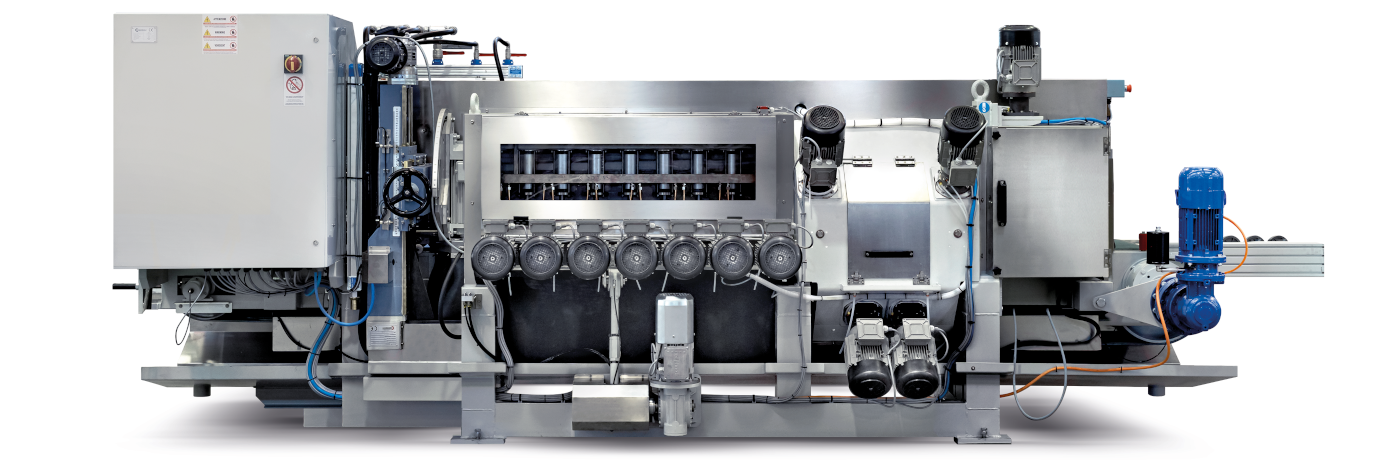

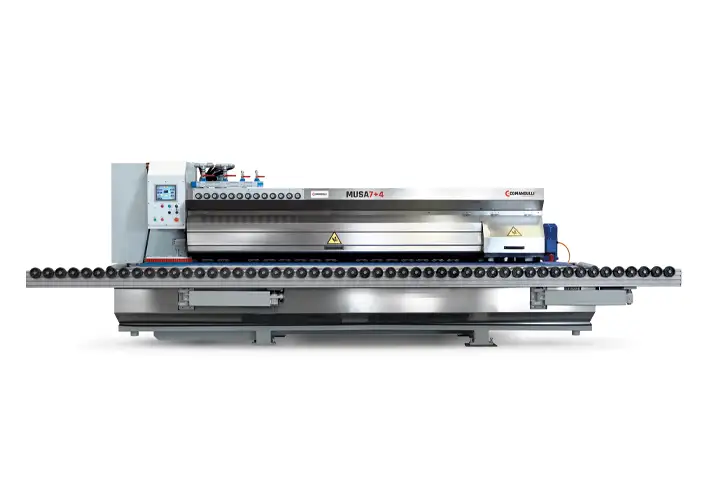

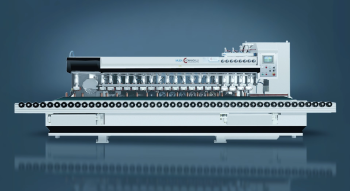

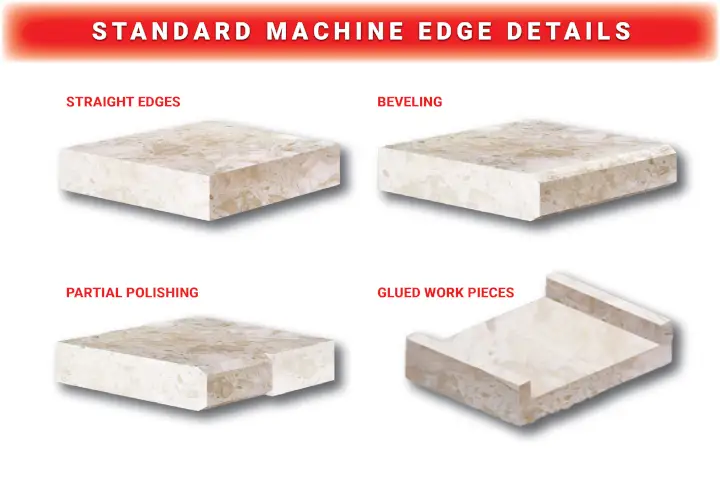

Designed according to the up-to-date concepts and structural principles, the automatic multi-spindle belt polishing machine model MUSA, is remarkable for its high productivity and its high-quality performances on every kind of marble, granite, engineered stones and ceramic. Its complete equipment allows it to perform all the finishing operations on the materials used in the countertop industry.
Your BACA Systems Account Executive Will Contact You Within One Business Day.
"*" indicates required fields

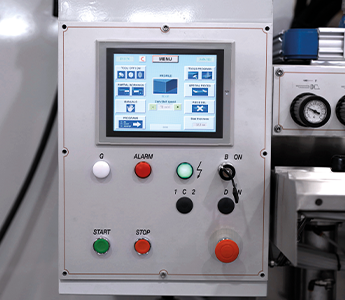

Push-button control panel with coloured visualized touch screen keyboard. Latest-generation electronics that, associated with a 8” screen, allows in a very simple and intuitive way, to program in automatic mode the intervention (even partial) of every single unit. Complete diagnostic visualized on the screen through images of all the machine devices which allows to immediately locate the problem.
N° 1 Face rectifier 90-degree calibrating spindle with positioning assembled on the QB column, manual movement. Driven by electric motor.

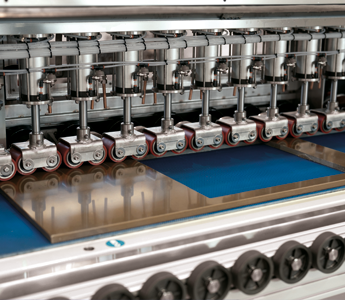

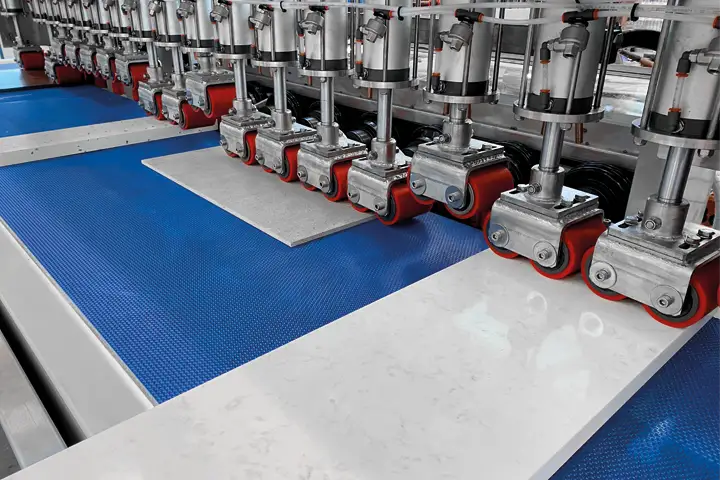

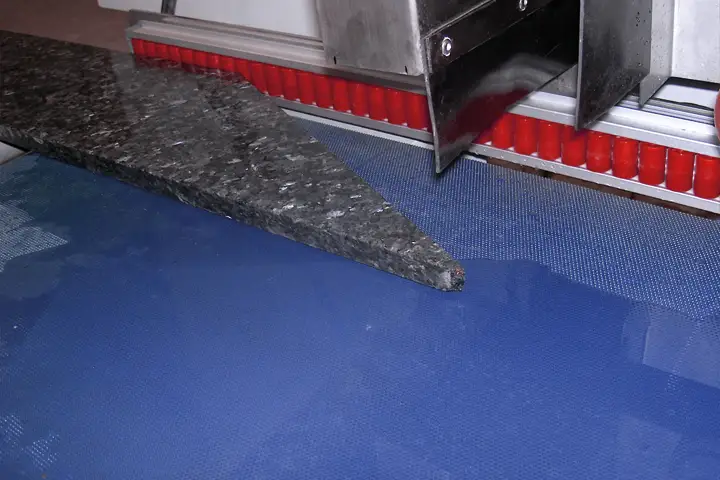

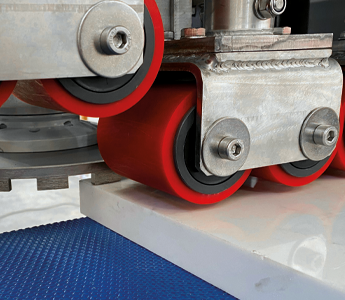

Utilized to hold pieces down while traveling through the machine.

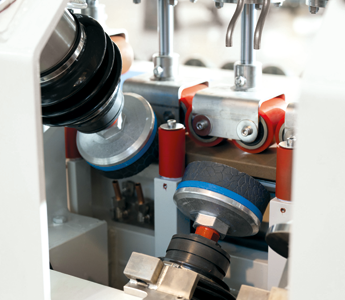

4 spindles for bevels (2 upper and 2 lower) – N°4 Spindles at 45° (N°2 up, N°2 down) for beveling; electric motors in axis with the spindles, power 2 Horsepower each, 900rpm; wheel diameter 5 inches; The first lower spindle is equipped with manual mechanical stop FM. Power 2 Horsepower each, 900rpm; wheel diameter is 5 inches.
For honing of the calibrated strip. Also is used for removing fiberglass from the B-side of exotic materials OR removing the net from ceramics (this option replaces the saw blade for rodding).

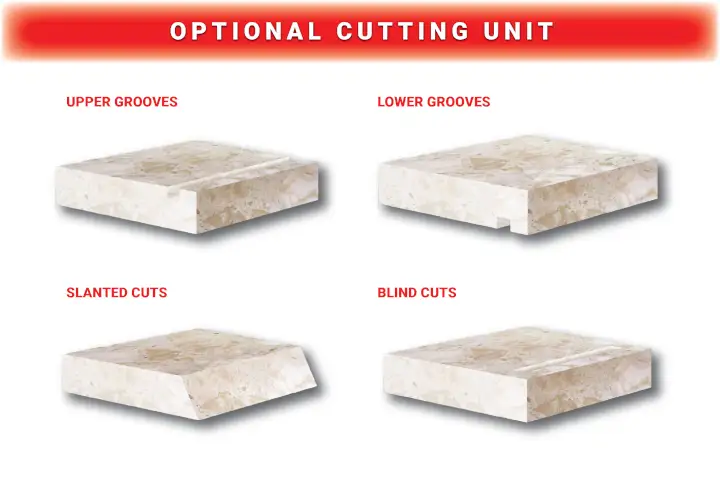

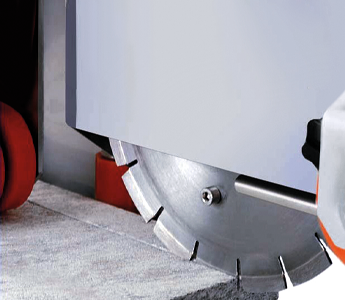

Saw attachment used for cutting a slot for rods (this option replaces the Vertical Spindle).

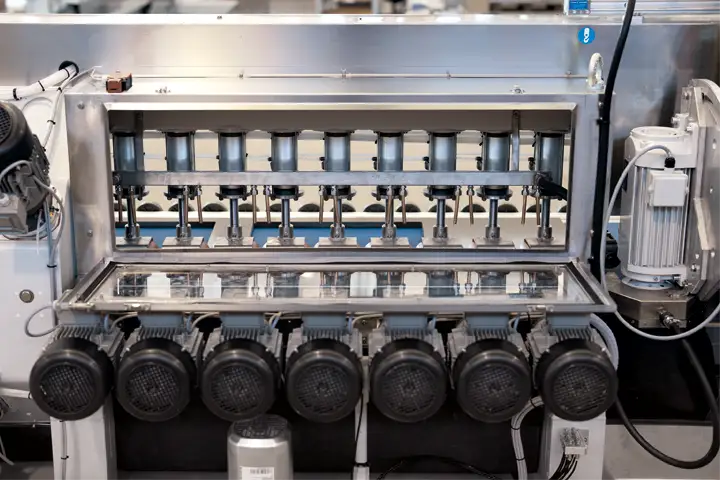

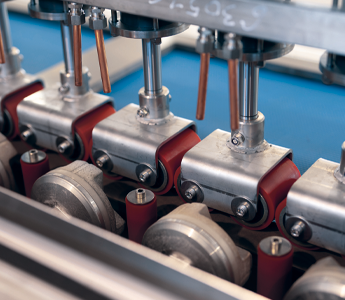

N°7 Polishing spindles for straight edges with electrical motor in axis; 2 Horsepower each, 900rpm each; spindles assembled on a beam with the possibility of floating during the working; wheel diameter 5 inches.

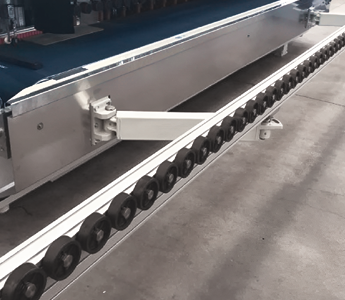

Used to support large workpieces.

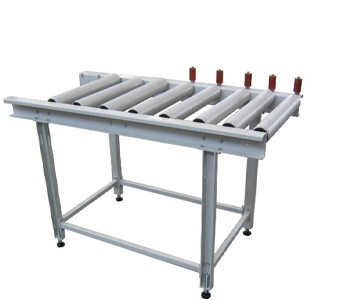

N° 2 Rollers table (n. 1 initial and n. 1 final) each one is 6.5’ long.
Horizontal machines make processing larger countertops safer and easier because they are much easier to handle (load/unload) versus vertical machines. The Musa was designed with both backsplash & full countertop pieces in mind.
Easy to use software & a color touch screen make it very easy for the operator.
Pads and tooling on the machine are very accessible, making it easy and fast for the operator to replace worn tools. This minimizes downtime and ensures the operator is getting a quality polish every time.

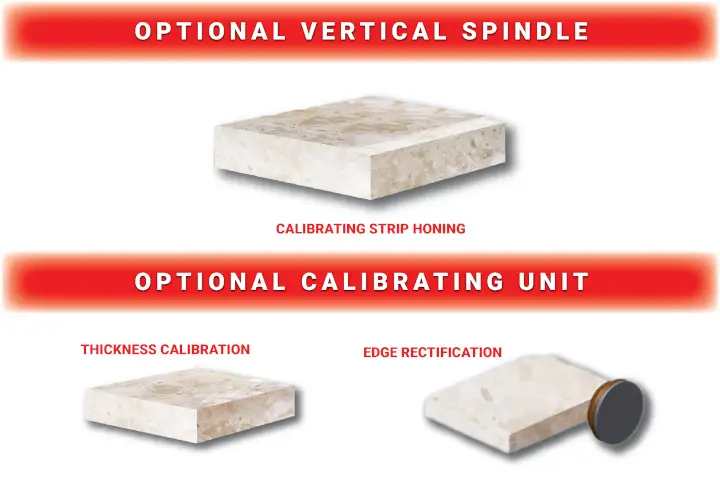

Musa has an optional calibrator, equipped with diamond tool, that can be positioned to mill the B-side of pieces to gauge the thickness of the material for the full length of the slab, minimize the need for using shims at installation. Calibrator is adjustable to a 90 degree position to grind back the glue line on laminated/stacked pieces.

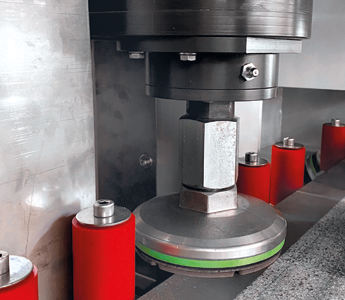

Vertical spindle allows for smooth of the underside (B-side) of parts. This function is commonly used to make the underside of overhangs smooth to the touch.
(7) 2HP Motors
(4) 2 HP Motors
7 1/2 Inches
5 Inches
≈ 10 Inches
0 – 9.6 Feet Per Minute
23.6 Inches
6 Millimeter to 8CM
3.14 Inches
31 Inches
36.2 Horsepower
177”x67”x71”
7,937 Pounds
40 GPM
32 Gal/1’
(Left -> Right) or (Right -> Left)
480V/60Hz
