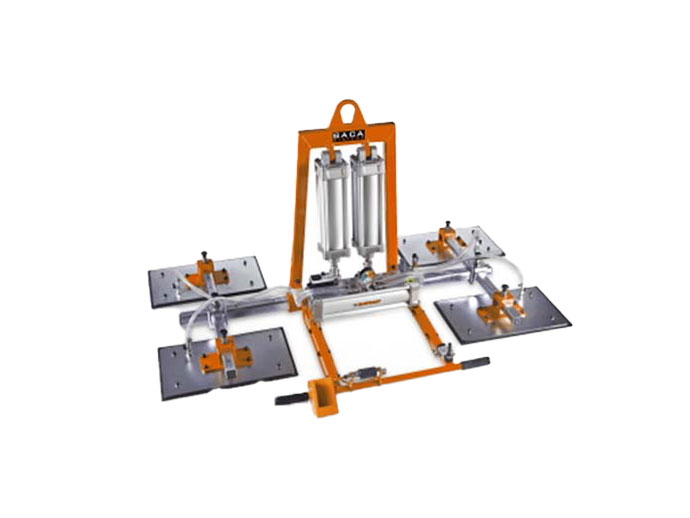

4-Pad Vacuum Lifter

Providing a total lifting capacity of 2,200 pounds and 0 to 90 degrees of tilting. Multiple safety measures are in place to prevent the involuntary release of materials, which could otherwise pose a threat of accidental injury.

Why Choose the 4-Pad Vacuum Lifter

Vacuum Lifter

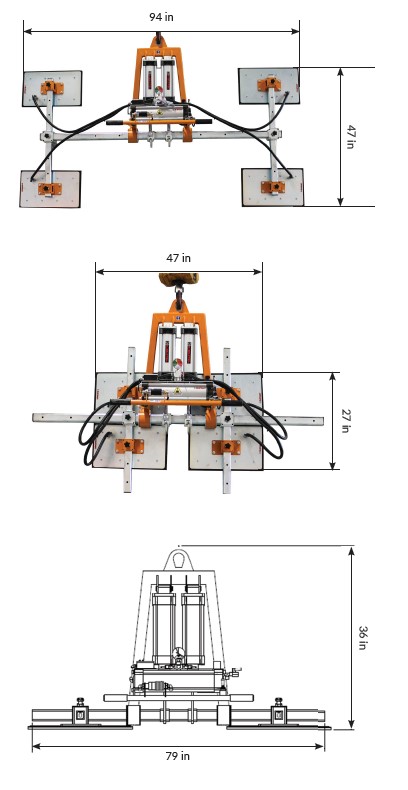

Vacuum Lifter Specs

Overview

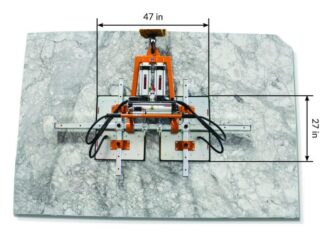

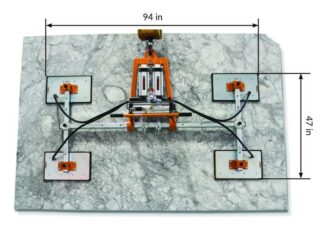

Slab or Vacuum Lifter

While all vacuum lifters operate differently depending on design and model, most function using the same general sequence. The machine follows the following process to lift a load. The vacuum lifter is hoisted from a crane or other hook mechanism and the lifting mechanism is lowered toward the load until its chain is loose. The lifting mechanism is propelled by the hoist, creating a vacuum motion. The vacuum motion picks up the load. The lifting mechanism and load are then lowered until the chain is loose, releasing the vacuum. The lifting mechanism is raised independently and when the chain is again slack, the lifter is ready to pick up its next load.

  • Lifting Capacity – 2,200lbs
  • 4 suction pads – 21” x 13”
  • Pneumatic Tilting 0-90°
  • Gauge with graduated and colored scale to monitor degree of vacuum
  • Powerful and quiet vacuum generator with reduced air consumption using 3/8 inch air lines
  • Gaskets made of rubberized fabric suitable for smooth, flamed, and bush-hammered surfaces

Specifications

4-Pad Vacuum Lifter

  • Vacuum lifters have a lifting capacity of 2,200 pounds
  • Equipped with four suction pads that measure approximately 21″ by 13″
  • Lifters have a pneumatic tilting rotation of up to 90 degrees
  • Vacuums come with a gauge, allowing operators to monitor the degree of vacuum
  • Unit gaskets are made of smooth rubber fabric appropriate for a variety of surfaces
  • Equipped with a powerful, quiet generator that ensures overall reduced air consumption
